The HAWK SOUNDMIX 1202FX is a mixer with 8 mono input channels, 2 stereo channels, built-in digital effects, 3-band EQ, and a USB audio interface for studio and live sound applications.

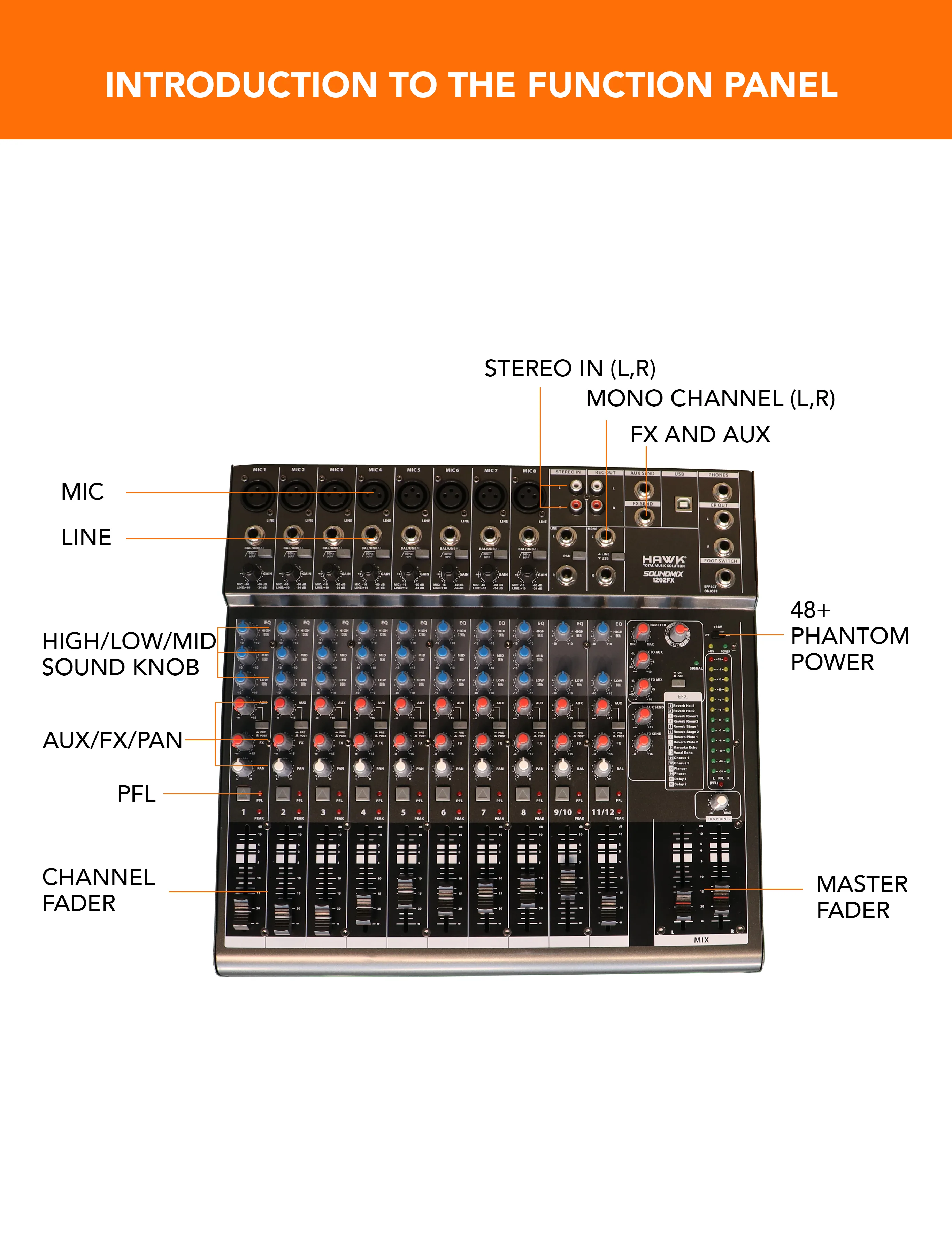

The HAWK SOUNDMIX 1202FX Audio Mixer is designed for live sound, studio recording, and music production. It features 8 mono input channels with XLR microphone and balanced/unbalanced line inputs, along with 2 stereo channels for connecting compatible audio sources. Its built-in digital effects, channel EQ controls, and USB audio interface provide flexibility for different audio setups.
Key Features
8 Mono Input Channels: Includes 8 low-noise XLR microphone inputs and 8 balanced/unbalanced mono line inputs.
2 Stereo Channels: Supports compatible stereo audio sources, with switching options for different input configurations.
3-Band EQ: Provides high, mid, and low frequency adjustment at 12 kHz, 1 kHz, and 80 Hz on mono channels.
80 Hz Low Cut Filter: Features an 18 dB/octave low-cut filter on channels 1–8 to help reduce unwanted low-frequency noise.

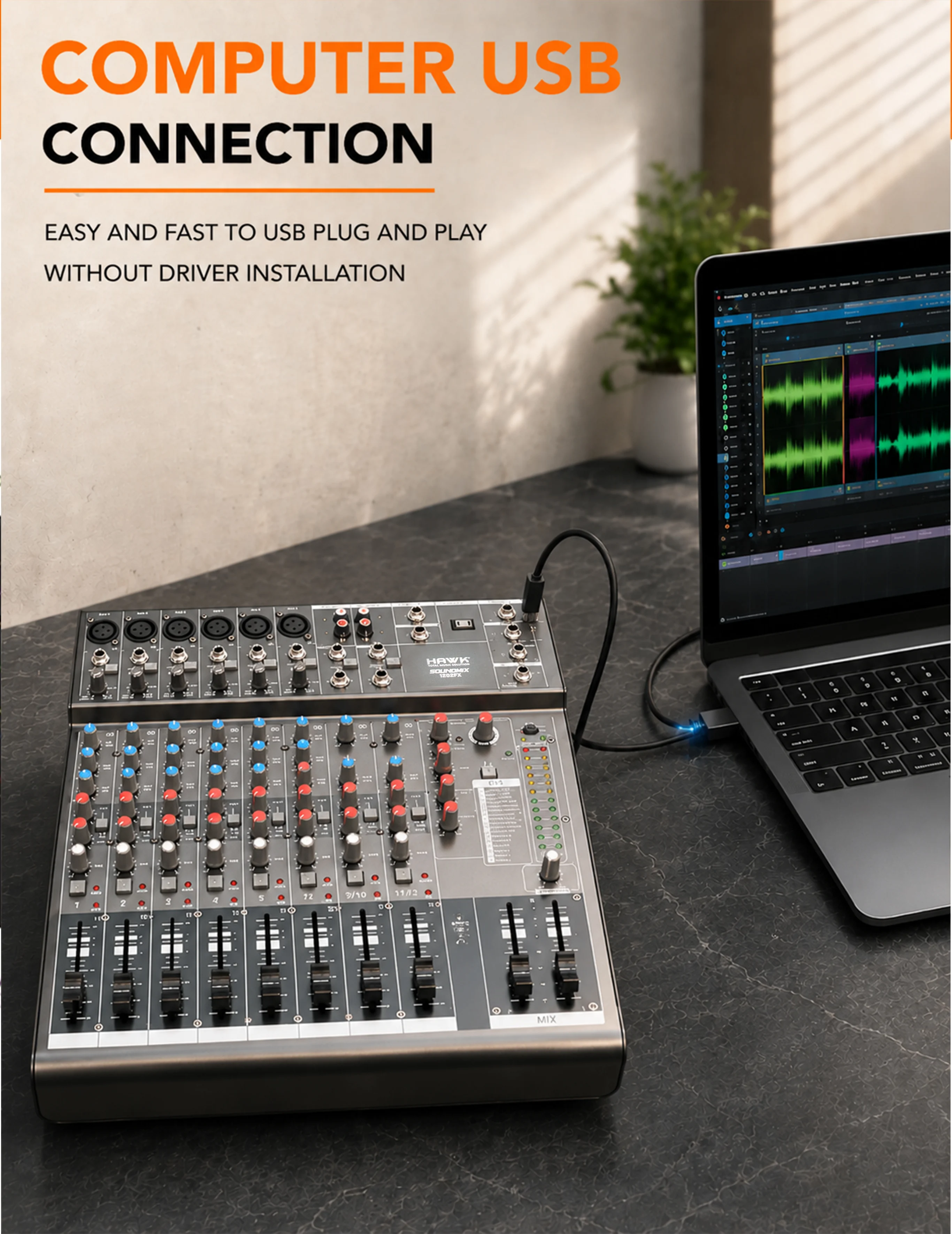

USB Audio Interface: Supports 2-in/2-out audio transfer at 16-bit/48 kHz, with a dedicated USB recording bus.
Built In Digital Effects: Includes digital FX with a dedicated send for adding effects to compatible audio channels.
Studio Grade Microphone Preamps: Includes microphone preamps with phantom power for compatible microphones.
Flexible Monitoring: Features PFL monitoring on all channels, along with headphone and control room outputs.
Master Outputs: Provides XLR and TRS connectors for connecting compatible audio equipment.
Applications: Suitable for live performances, rehearsal spaces, home studios, recording setups, podcasting, and music production.
| Brand | HAWK |
|---|---|
| Model Number | SOUNDMIX 1202FX |
| Product Name | 1202FX Audio Mixer |
| Product Type | Audio Mixer with USB Interface and Digital FX |
| Mono Channels | 8 |
| Stereo Channels | 2 |
| Microphone Inputs | 8 Low Noise XLR Inputs |
| Line Inputs | 8 Balanced/Unbalanced Mono Line Inputs |
| Mono Channel EQ | 3-Band EQ |
| Mono EQ Frequencies | 12 kHz, 1 kHz, 80 Hz |
| Low Cut Filter | 80 Hz, 18 dB/Octave on Channels 1–8 |
| Stereo Channel EQ | 2-Band EQ |
| Stereo EQ Frequencies | 12 kHz and 80 Hz |
| USB Interface | 2-In / 2-Out |
| USB Audio Resolution | 16-Bit / 48 kHz |
| USB Recording | Dedicated USB Recording Bus |
| Microphone Preamps | Studio Grade with Phantom Power |
| Built In Effects | Digital FX with Dedicated Send |
| Auxiliary Features | FX Auxiliary Sends |
| Channel Controls | Gain, Pan and Balance |
| Monitoring | PFL on All Channels |
| Headphone Output | Available |
| Control Room Outputs | Available |
| Master Outputs | XLR and TRS Connectors |
| Applications | Live Sound, Studio Recording, Music Production and Podcasting |
It features 8 mono input channels and 2 stereo channels, providing connections for compatible microphones, line-level equipment, and stereo audio sources.
Yes, it includes a 2-in/2-out USB audio interface supporting 16-bit/48 kHz audio and a dedicated USB recording bus.
Yes, it features built-in digital effects, a dedicated FX send, and auxiliary sends for flexible audio processing.
